Connect Homes Connect 5 Prefab Home Model.

Connect Homes / Connect 5

Connect Homes Connect 5 Prefab Home

The Connect 5 prefab home model from Connect Homes is a single level, 1,600 sq ft home offering a choice of two or three bedrooms and two baths. The home is constructed from 5 of the Connect 40′ long modules and offers open space, indoor-outdoor space and large spans of glass.

The home features an over-sized master bedroom with connected master bath. A centralized kitchen allows placement of a large living and dining room at the corners of the common living space. Large windows and sliding glass doors allow lots of natural light inside these spaces. The plan also provides separate laundry and mechanical closets.

Connect Homes Connect 5 Features

  • Home design goals of; simple, smart, efficient
  • Patented modular system, lower shipping costs
  • Turnkey, green, small footprint homes
  • 90% Factory Built in San Bernardino Facility
  • Streamline, transparent pricing, process and construction
  • Pricing includes all finishes, doors, windows, fixtures, HVAC, cabinets and appliances
  • Homes built on steel frame module
  • High solar reflectance roof (index 107)
  • R-38 roofing insulation
  • R-21 wall insulation
  • Low-E windows and doors

Connect Homes Connect 5 prefab home model.
Connect Homes Connect 5

Connect Homes Connect 5L prefab home model.
Connect Homes Connect 5L

Connect Homes Connect 5 prefab home two bedroom floor plan.
Connect Homes Connect 5 two bedroom floor plan

Connect Homes Connect 5 prefab home three bedroom floor plan.
Connect Homes Connect 5 three bedroom floor plan

Connect 5 by Connect Homes prefab home model view of the kitchen and kitchen island.
Connect 5 kitchen island

Connect 5 by Connect Homes interior showing the living, dining and side deck.
Connect 5 living and dining

Connect 5 by Connect Homes interior view of the living room and large windows with view.
Connect 5 by Connect Homes living with view!

Connect 5 by Connect Homes prefab home interior featuring the master bedroom and connected deck.
Connect 5 master bedroom and connected deck

Connect 5 by Connect Homes interior - kitchen and view of rear deck.
Connect 5 kitchen and rear deck

Connect 5 by Connect Homes interior view of the kitchen island.
Connect 5 kitchen island

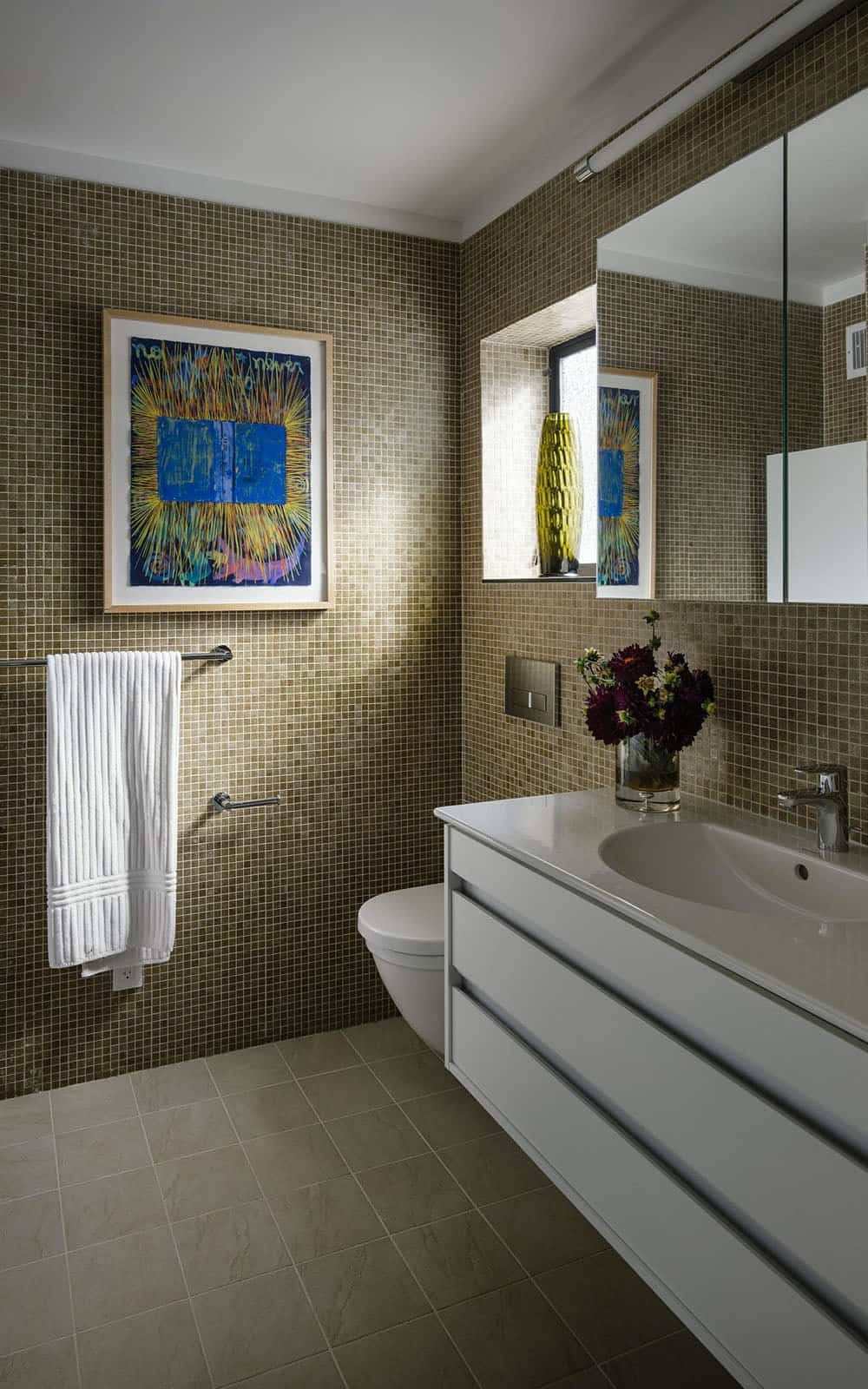

Connect 5 by Connect Homes bathroom.
Connect 5 bathroom

Connect:Homes Connect 5 Room Summary (ft.in)

First Floor

Public Living Space

Private Living Space

Bathrooms

Utility Space

Outdoor Space

Second Floor

Bedrooms

Bathrooms

Additional Rooms

Build Details

Foundation:Pier / Foundation wall
Roofing:PVS membrane
Framing:wood
Shealthing:OSB
Construction Notes:

90% complete when leaving factory (exterior and interior finishes, plumbing, mechanical and electrical systems)
70% of construction products are Environmentally Preferable by USGBC
Rain Screen external wall construction
Up to LEED Platinum / CalGreen Tier 2
Net-Zero Energy capable
High solar reflectance roof system (SRI of 107)
Steel Framed Modules

Insulation

Ceiling: (R | Type)R-21 30% post-consumer recycled glass content
Wall: (R | Type)R-21 30% post-consumer recycled glass content
Ceiling: (R | Type)R-45

Finishes

Siding:Fiber Cement / Cedar T&G
Windows:Milgard 420
Entry Doors:
Sliding / Terrace Doors:
Walls:Gypsum drywall
Floors:Vinyl
Interior Finish Notes:

High efficiency dimmable LED and Fluorescent lighting
Low VOC sealants and adhesives
Zero VOC paints

Connect Homes Connect 5 Package Includes

Appliances

Range:KitchenAid Architect Series II
Cooktop:
Microwave:KitchenAid
Oven:
Kitchen Hood:KitchenAid
Refrigerator:KitchenAid Architect Series II
Dishwasher:KitchenAid Architect Series II
Washer / Dryer:Asko W6222 / Asko T712

Kitchen

Countertops:Icestone
Kitchen Cabinets:IKEA Applad
Kitchen Sink:
Kitchen Faucet:Dual spray low flow

Bath

Bath Sink:Duravit Scola
Bath Faucet:
Toilet:Duravit wall mount
Bath Tub:Zuma C7232

Mechanicals

Water Heater:Rinnai tankless
HVAC Heating:Daikan ductless heat pump
HVAC Cooling:Daikan ductless heat pump
Ventilation System:Whole house ventilation system
Solar Panels:optional
Alt Energy System:
Green Home Features:

Green Home Features

Green Home Features:
Alt Energy System:
Solar Panels:optional
